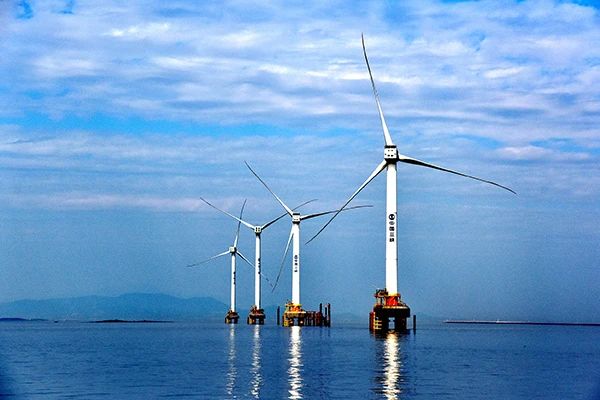

Hlau Rope rau Cua Tsim Tsim
Cov hlua hlau ntev ntev rau cua tshuab hluav taws xob yog cov khoom siv ua haujlwm siab tshwj xeeb tsim thiab tsim khoom rau kev nyab xeeb nqa cov khoom siv hauv kiv cua ntauwd -- dawb climber, climber lossis hoist nyob rau hauv kev ua haujlwm. Cov yam ntxwv ntawm cov khoom yog feem ntau qhia raws li hauv qab no:
1, Siab tawg quab yuam, muaj kev nyab xeeb ntawm cov khoom siv;
2, Lub neej qaug zog siab, ntau dua 3000 zaug ntawm kev khoov qaug zog raws li hom kev sim;
3, Kev tiv thaiv corrosion siab, tuaj yeem ua tau raws li qhov nruab nrab ntsev tsuag tshuaj ntsuam (NSS) 240-720 teev yam tsis muaj xeb liab;
4, ruaj khov qauv, extrusion tsis kam, kev pab lub neej ntev;
5, Multi-layer qauv khoom muaj kev ua tau zoo los tiv thaiv kev sib hloov.
4 × 19W-WSC 4 × 31WS-FC
|
Txoj kab uas hla (mm) |
Siv hnyav kg/100 m os |
Min Breaking Load KN |
Min Breaking Load / kN |
||
|
1770 MPa |
Xyoo 1960 MPa |
2160 MPa rau |
|||
|
5 |
10.3 |
15.9 |
17.6 |
19.4 |
20.8 |
|
6 |
14.8 |
22.9 |
25.4 |
28.0 |
30.0 |
|
7 |
20.1 |
31.2 |
34.6 |
38.1 |
40.9 |
|
8 |
26.2 |
40.8 |
45.2 |
49.8 |
53.4 |
|
8.3 |
28.8 |
43.9 |
48.6 |
53.6 |
57.4 |
|
9 |
33.2 |
51.6 |
57.2 |
63.0 |
67.5 |
|
9.1 |
34.6 |
52.8 |
58.4 |
64.4 |
69.0 |
|
10 |
41.0 |
63.7 |
70.6 |
77.8 |
83.4 |
|
10.2 |
43.5 |
66.3 |
73.4 |
80.9 |
86.7 |
|
11 |
49.6 |
77.1 |
85.4 |
94.1 |
101 |
|
12 |
59.0 |
91.8 |
102 |
112 |
120 |
|
13 |
69.3 |
108 |
119 |
131 |
141 |
|
14 |
80.4 |
125 |
138 |
152 |
163 |
|
15 |
92.3 |
143 |
159 |
175 |
188 |
Lus Cim: Tsis tuaj yeem siv nrog kev ntxhov siab!
5 × 19S-FC
5 × 26 WS-FC
|
Txoj kab uas hla (mm) |
Siv hnyav kg/100 m os |
Min Breaking Load KN |
Min Breaking Load / kN |
||
|
1770 MPa |
Xyoo 1960 MPa |
2160 MPa rau |
|||
|
5 |
9.5 |
14.6 |
16.2 |
17.8 |
18.9 |
|
6 |
13.7 |
21.0 |
23.3 |
25.7 |
27.2 |
|
7 |
18.6 |
28.6 |
31.7 |
34.9 |
37.0 |
|
8 |
24.3 |
37.4 |
41.4 |
45.6 |
48.4 |
|
8.3 |
26.2 |
40.3 |
44.6 |
49.1 |
52.1 |
|
9 |
30.8 |
47.3 |
52.4 |
57.7 |
61.2 |
|
10 |
38.0 |
58.4 |
64.7 |
71.3 |
75.6 |
|
11 |
46.0 |
70.7 |
78.3 |
86.2 |
91.5 |
|
12 |
54.7 |
84.1 |
93.1 |
103 |
109 |
|
13 |
64.2 |
98.7 |
109 |
120 |
128 |
|
14 |
74.5 |
115 |
127 |
140 |
148 |
|
15 |
85.5 |
131 |
146 |
160 |
170 |
Lus Cim: Tsis tuaj yeem siv nrog kev ntxhov siab!
6 × 19W-WSC/IWRC/FC, 6 × 19S-WSC/IWRC/FC
|
Txoj kab uas hla (mm) |
Siv hnyav kg/100 m os |
Min Breaking Load KN |
Min Breaking Load / kN |
|||||||
|
1770 MPa |
Xyoo 1960 MPa |
2160 MPa rau |
||||||||
|
Fiber tub ntxhais |
Hlau tub ntxhais |
Fiber tub ntxhais |
Hlau tub ntxhais |
Fiber tub ntxhais |
Hlau tub ntxhais |
Fiber tub ntxhais |
Hlau tub ntxhais |
Fiber tub ntxhais |
Hlau tub ntxhais |
|
|
5 |
9.5 |
10.5 |
14.60 |
15.8 |
16.2 |
18.4 |
17.8 |
19.2 |
18.1 |
21.6 |
|
6 |
13.7 |
15.0 |
21.03 |
22.7 |
23.3 |
26.5 |
25.7 |
27.7 |
26.0 |
31.1 |
|
7 |
18.6 |
20.5 |
28.62 |
30.9 |
31.7 |
36.0 |
34.9 |
37.7 |
35.5 |
42.3 |
|
8 |
24.3 |
26.8 |
37.4 |
40.3 |
41.4 |
47.0 |
45.6 |
49.2 |
46.3 |
55.3 |
|
8.3 |
26.2 |
28.8 |
40.2 |
43.4 |
44.6 |
50.6 |
49.1 |
53.0 |
49.8 |
59.5 |
|
9 |
30.8 |
33.9 |
47.3 |
51.0 |
52.4 |
59.5 |
57.7 |
62.3 |
58.6 |
70.0 |
|
9.5 |
34.3 |
37.8 |
52.7 |
56.8 |
58.4 |
66.3 |
64.3 |
69.4 |
65.3 |
78.0 |
|
10 |
38.0 |
41.8 |
58.41 |
63.0 |
64.7 |
73.5 |
71.3 |
76.9 |
72.4 |
86.4 |
|
11 |
46.0 |
50.6 |
70.68 |
76.2 |
78.3 |
88.9 |
86.2 |
93.0 |
87.6 |
105 |
|
12 |
54.7 |
60.2 |
84.11 |
90.7 |
93.1 |
106 |
103 |
111 |
104 |
124 |
|
13 |
64.2 |
70.6 |
98.71 |
106 |
109 |
124 |
120 |
130 |
122 |
146 |
|
14 |
74.5 |
81.9 |
114.5 |
124 |
127 |
144 |
140 |
151 |
142 |
169 |
|
15 |
85.5 |
94.1 |
131.4 |
142 |
146 |
165 |
160 |
173 |
163 |
194 |
Lus Cim: Tsis tuaj yeem siv nrog kev ntxhov siab!
5 × K19S-FC
5 × K26 WS-FC
|
Txoj kab uas hla (mm) |
Siv hnyav kg/100 m os |
Min Breaking Load KN |
Min Breaking Load / kN |
||
|
1770 MPa |
Xyoo 1960 MPa |
2160 MPa rau |
|||
|
5 |
10.6 |
16.5 |
18.3 |
20.1 |
21.3 |
|
6 |
15.3 |
23.8 |
26.3 |
29.0 |
30.7 |
|
7 |
20.8 |
32.4 |
35.8 |
39.5 |
41.8 |
|
8 |
27.2 |
42.3 |
46.8 |
51.6 |
54.5 |
|
8.2 |
29.3 |
45.5 |
50.4 |
55.5 |
59.5 |
|
9 |
34.4 |
53.5 |
59.2 |
65.3 |
69.1 |
|
10 |
42.5 |
66.0 |
73.1 |
80.6 |
85.3 |
|
11 |
51.4 |
79.9 |
88.5 |
97.5 |
103 |
|
12 |
61.2 |
95.1 |
105 |
116 |
123 |
|
13 |
71.8 |
112 |
124 |
136 |
144 |
|
14 |
83.3 |
129 |
143 |
158 |
167 |
|
15 |
95.6 |
149 |
164 |
181 |
192 |
Lus Cim: Tsis tuaj yeem siv nrog kev ntxhov siab!
6 × K19S-WSC/IWRC
|
Txoj kab uas hla (mm) |
Siv hnyav kg/100 m os |
Min Breaking Load KN |
Min Breaking Load / kN |
||
|
1770 MPa |
Xyoo 1960 MPa |
2160 MPa rau |
|||
|
5 |
11.6 |
18.4 |
20.3 |
22.4 |
23.0 |
|
6 |
16.7 |
26.4 |
29.3 |
32.3 |
33.0 |
|
7 |
22.8 |
36.0 |
39.9 |
43.9 |
45.0 |
|
8 |
29.8 |
47.0 |
52.1 |
57.4 |
58.8 |
|
9 |
37.7 |
59.5 |
65.9 |
72.6 |
74.4 |
|
10 |
46.5 |
73.5 |
81.3 |
89.6 |
91.8 |
|
11 |
56.3 |
88.9 |
98.4 |
108 |
111 |
|
12 |
67.0 |
106 |
117 |
129 |
132 |
|
13 |
78.6 |
124 |
137 |
151 |
155 |
|
14 |
91.1 |
144 |
159 |
176 |
180 |
|
15 |
105 |
165 |
183 |
202 |
207 |
Lus Cim: Tsis tuaj yeem siv nrog kev ntxhov siab!
